StringBuilderCache Benchmarks

The benchmark tests for the StringBuilderCache compare the throughput time and memory consumption differences between using the StringBuilderCache and the standard StringBuilder class (where a new instance is instantiated for each use). There are two benchmark scenarios:

1. A single-threaded scenario where a single thread repeatedly use StringBuilder class instances.
2. A multi-threaded scenario where multiple threads use StringBuilder instances simultaneously.

The results for these scenarios are presented in the following sections.

Summary

The benchmark results demonstrate that StringBuilderCache significantly improves performance and reduces memory allocations compared to the standard StringBuilder class alone, particularly in scenarios with repeated or concurrent usage. In the single-threaded scenario, StringBuilderCache achieves faster throughput by reusing cached instances, minimizing the overhead of creating new StringBuilder objects.

In the multi-threaded scenario, the benefits of StringBuilderCache are even more pronounced, as it effectively handles concurrent operations while maintaining lower memory consumption and allocation rates. These results highlight the efficiency of StringBuilderCache in both single-threaded and multi-threaded environments, making it a valuable optimization for applications that require frequent string manipulations.

Example

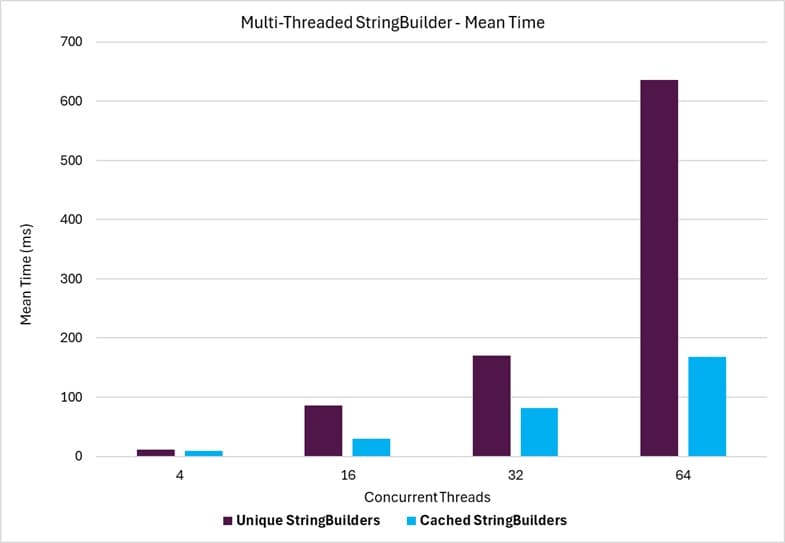

The following graph shows the throughput time for the Multi-Threaded benchmarks. The horizontal axis shows the number of concurrently running benchmark threads. The time is shown in milliseconds.

Benchmark Scenarios

The benchmark scenarios are divided into two categories: Single Thread and Multiple Threads.

Single Thread

The Single Thread benchmark scenario uses a single thread to repeatedly build a string from a series of string segments using the StringBuilder class, and then retrieve the built string. Read More

Multiple Threads

The Multiple Threads benchmark scenario uses the same operation flow as the Single Thread scenario, but multiple threads run the operations simultaneously. Read More

Reading Results

Allocations

Building a string in memory inherently requires memory allocations, so the allocation values in the benchmarks are substantial. While the absolute allocation values may not provide much insight, the key takeaway is the comparison and difference in allocations between the StringBuilder and StringBuilderCache use cases. The Alloc Ratio column is particularly useful for this comparison.

The string segments used to build the strings are pre-allocated (outside the scope of the benchmarks) and are identical for each benchmark operation. The allocations measured are solely the result of the operations performed by the StringBuilder or StringBuilderCache classes.

Legend

These are the standard BenchmarkDotNet columns found in the benchmark results. For these benchmarks, the baseline is the 'Unique StringBuilders' scenarios, where a unique StringBuilder instance is created for each operation.

Column	Description
Mean	Arithmetic mean of all measurements
Error	Half of 99.9% confidence interval
StdDev	Standard deviation of all measurements
Median	Value separating the higher half of all measurements (50th percentile)
Ratio	Mean of the ratio distribution ([Current]/[Baseline])
RatioSD	Standard deviation of the ratio distribution ([Current]/[Baseline])
Gen0	GC Generation 0 collects per 1000 operations
Gen1	GC Generation 1 collects per 1000 operations
Gen2	GC Generation 2 collects per 1000 operations
Allocated	Allocated memory per single operation (managed only, inclusive, 1KB = 1024B)
Alloc Ratio	Allocated memory ratio distribution ([Current]/[Baseline])
1 μs	1 Microsecond (0.000001 sec)
1 ms	1 Millisecond (0.001 sec)

HTML Tables

Since the benchmark results can create rather large tables, and the benchmark output tables can be difficult to absorb with the horizontal and vertical table scrolling, the results are also provided in separate static HTML tables for each scenario.

• Single Threaded
• Multi-Threaded

Versions

The benchmarks published here used the following versions of the libraries:

• BenchmarkDotNet version: 0.14.0
• KZDev.PerfUtils version: 2.0.0
• StringBuilder version: .NET 9.0.4
